LC Adjustable Fiber Optic Connector Boot For Single-mode Multimode Fiber Optic Connectors

Cores : 2 cores, duplex, 1 cores, simplex, multi fibers

Insertion loss : 0.2dB

Length : 3m, 5m, customized

Brand Name : KCO

Model Number : LC/UPC, LC/APC, LC/PC

Certification : ISO9001, RoHS

Place of Origin : Guangdong, China

MOQ : Negotiation

Price : Negotiation

Payment Terms : Western Union,T/T,L/C

Supply Ability : 100,000pcs/month

Delivery Time : 2~5 days after get payment

Packaging Details : PE bag, carton box, wooden pallet

Mode : Multimode, MM, single mode, SM, Mono mode

Type : LC/UPC, LC/APC, LC/PC

Return loss : 55dB

Contact Now

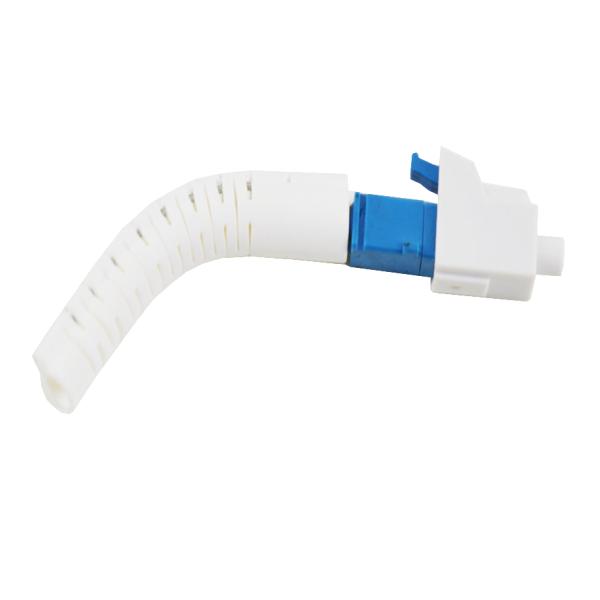

LC single mode multimode fiber optic connector with 45° 90° degree bent boot

Fiber Optic Connectors Descriptions:

Fiber Optic Connectors is the device connected with two optical fiber cables. It is face to face precision connecting in order to make the transmission fiber coupled to the receiving fiber. To make sure the transmission system and performance stable, the insertion loss and optical performance of fiber optic connector should be excellent.

The LC connector provides a pull-proof design and small size perfect for high-density applications.
Available in simplex or duplex versions.
The LC connector is provided with a 1.25mm zirconia ferrule.
The LC also incorporates a unique latching mechanism providing stability in system rack mounts.
We can supply the LC fiber optic connector with 45 degree or 90 degree bent boot for fiber optic patch cable making.

Fiber Optic Connectors Applications:

Telecommunication Network, wide area networks.
Local Area Network(LAN).
Testing Equipment.
Optical Switch interface connections
Gigabit Ethernet
CATV and WAN
Testing Instrument, active device connection
Premise Installations
Telecommunication Networks
Fiber to the home (FTTH)

Fiber Optic Connectors Features:

High quality ceramic components and Material.
End-face geometry requirement complies to Telcordia GR-326-CORE.
100% tested on optical performance (Insertion Loss & Return Loss).
Simplex, duplex and higher core densities.
900 micron, 2mm, 3mm cable applications.
Low insertion loss
High return loss
Excellent repeatability
Compact and anti-pull design
High precision exact alignment
UPC, PC or APC polished connectors

Fiber Optic Connectors Product Pictures:

LC Adjustable Fiber Optic Connector Boot For Single-mode Multimode Fiber Optic Connectors

Details about Fiber Optic Connectors:

Connector Ferrule	Ceramic
Alignment Sleeve	Ceramic
Connector Body	UL 94V-0 rated Thermoplastic to meet standard; amiability ratings
Crimp Insert/Crimp Tube	Nickel-Plated Brass/Thermoplastic Elastomer Polymer
Dust Cap	Nylon or PVC
Strain Relief Boot	Flame retardant (UL-Rated 94-V0) polymer
Connector Style	SC, FC, ST, LC, MTRJ, etc

Fiber Optic Connectors Specifications:

Item	Single mode				Multimode
	PC	UPC	APC		62.5/125	50/125	50/125 10G
Insert Loss/connector (single Fiber)	0.3dB Max. (0.2dB typ.)				0.3dB Max. (0.2dB typ.)
Return Loss	≥45 dB	≥50 dB		≥60 dB	N.A
Insert Loss/MTRJ Connector	0.5dB Max. (0.45dB typ.)				0.5dB Max. (0.45dB typ.)
Pull Strength	≥98N				≥98N

Ordering Information:

Connector type: SC, LC, FC, ST, MTRJ, SMA, DIN, D4, etc
Polish: UPC, PC, APC
Mode: Single mode, Multimode
Fiber Count: Simplex or Duplex
Connector boot diameter: 0.9mm, 2.0mm or 3.0mm

Packing ways:

According to export standard packing.

OEM/ODM service:

Our OEM and ODM service is always ready!

If you want to show your own brand LOGO on the product cable, product package or rack mount, it is no any problem. Our OEM service is always ready to servise you.

Shipping:

By International express: TNT, DHL, UPS, special line express, etc
By air: CA, ZH, CZ, AA, AC, BA, etc
By sea
